Antistatic Packaging Trays

Static charges can lead to numerous problems. Clear, transparent coatinga with Clevios™ produces surfaces with an antistatic, static dissipative, or conductive finish with a precisely tunable sheet resistances (SR) in the range of 10E4 – 10E10 Ohm/sq.

After being assembled, displays and related parts and components for smartphones and tablets are usually transported either within the factories or to another facility. The plastic packaging trays used for this purpose must have antistatic properties as static charges can cause numerous problems. Common on plastic surfaces, these charges can attract dust and cause ESD (electro-static discharge) damage to sensitive electronic components and devices.

A perfect coating against ESD damage

Plastic surfaces coated with Clevios™ have an antistatic, static dissipative, or conductive finish with precisely tunable sheet resistances (SR) in the range of 10E4 – 10E10 Ohm/sq. Applied to packaging trays, Clevios™ protects your products from issues caused by static charges.

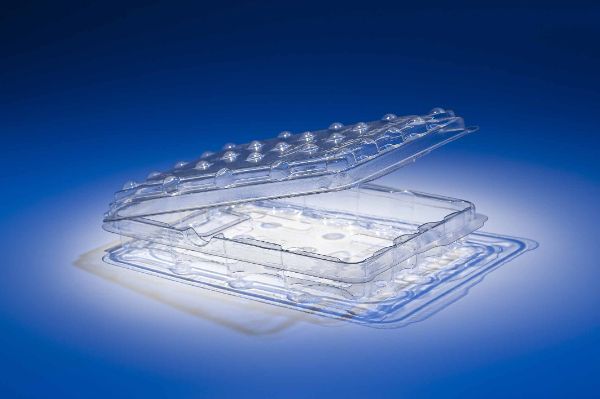

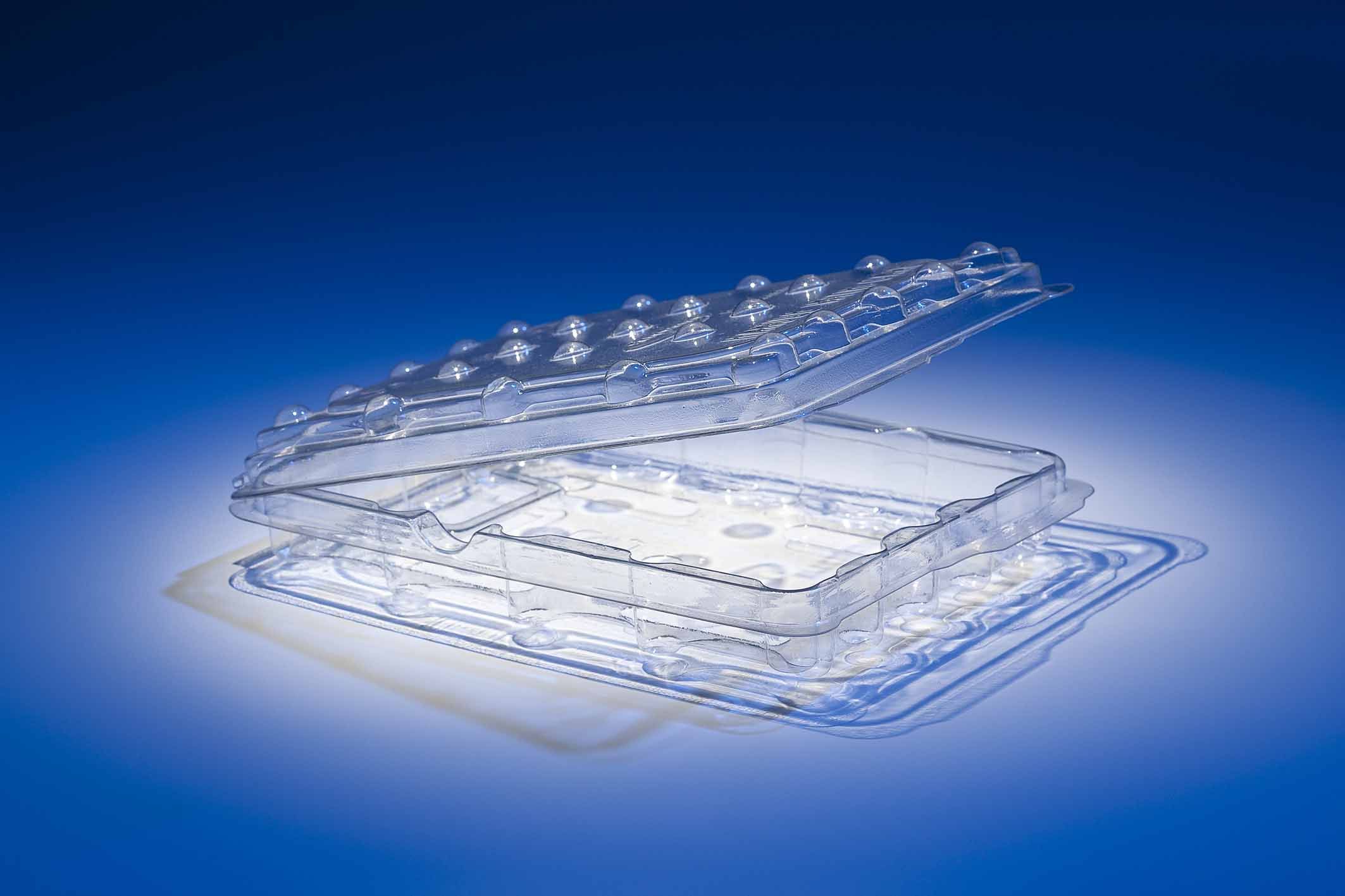

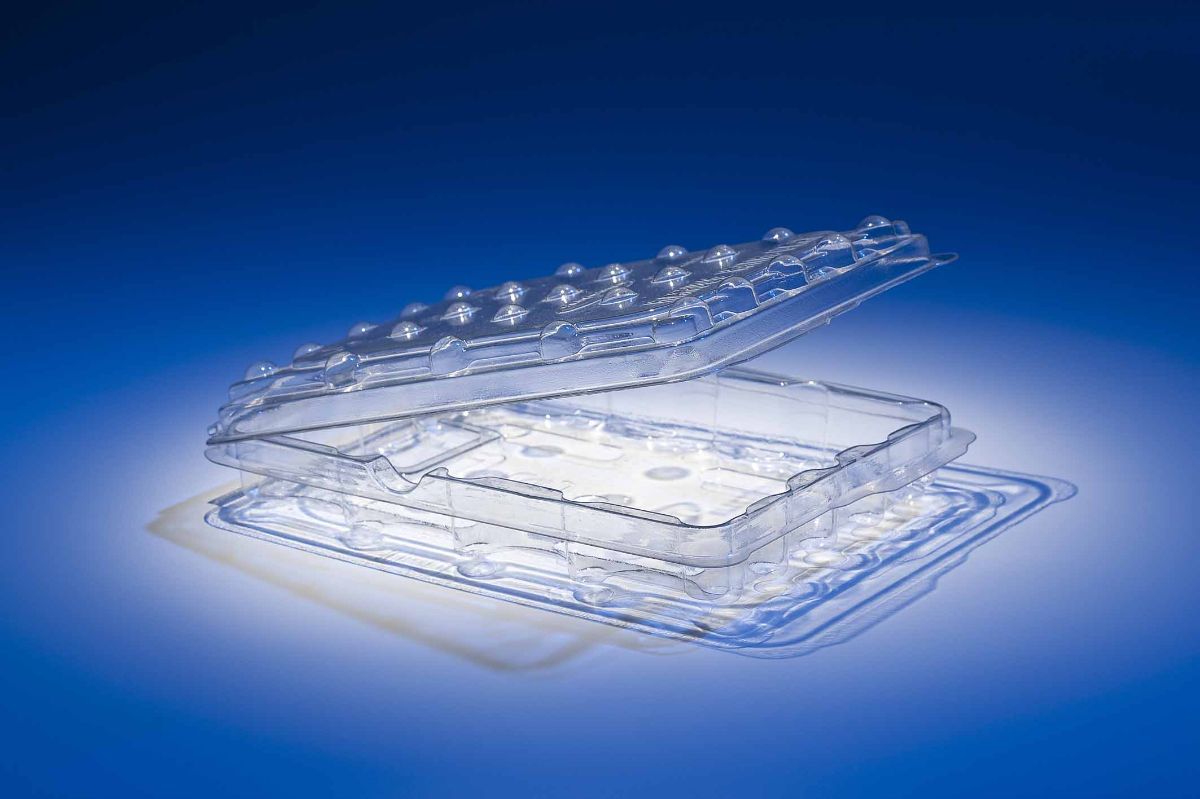

Antistatic packaging trays are made by coating plastic sheets with a special Clevios™ formulation, e.g. Clevios™ F AS. After drying, the antistatic sheets are thermoformed into packaging trays. Thanks to the intrinsic flexibility and high temperature stability of Clevios™, the antistatic properties survive the thermoforming process.

Heraeus also offers Clevios™ P T2and Clevios™ P T4, an aqueous PEDOT:PSS dispersion that can be used as raw material for coating formulations, and has developed special materials that enable higher elongation in the thermoforming process of up to 500%.

3 Results

Name
Product Description
Type
Sheet Resistance Range
Printing or Coating Method
Application
Clevios™ F ASFormulation for conductive and static dissipative coatings; Coating formulation, aqueous PEDOT / PSS dispersion, blue liquidFormulation10E4 - 10E6 Ohm/sqWirebare Coating, Slot-die CoatingAntistatic/ESD Protection, Antistatic Coated Films, Antistatic Packaging Trays
Clevios™ P T2Dispersion for static dissipative and conductive formulations Aqueous PEDOT / PSS dispersion, blue liquidDispersion100 - 1000 Ohm/sq, 1000 - 10.000 Ohm/sq, 10E4 - 10E6 Ohm/sq, > 10E6 Ohm/sqAntistatic/ESD Protection, Antistatic Coated Films, Antistatic Packaging Trays
Clevios™ P T4Aqueous PEDOT / PSS dispersion, blue liquidDispersion100 - 1000 Ohm/sq, 1000 - 10.000 Ohm/sq, 10E4 - 10E6 Ohm/sq, > 10E6 Ohm/sqLC Writing Boards, Touch Displays, Antistatic Packaging Trays
